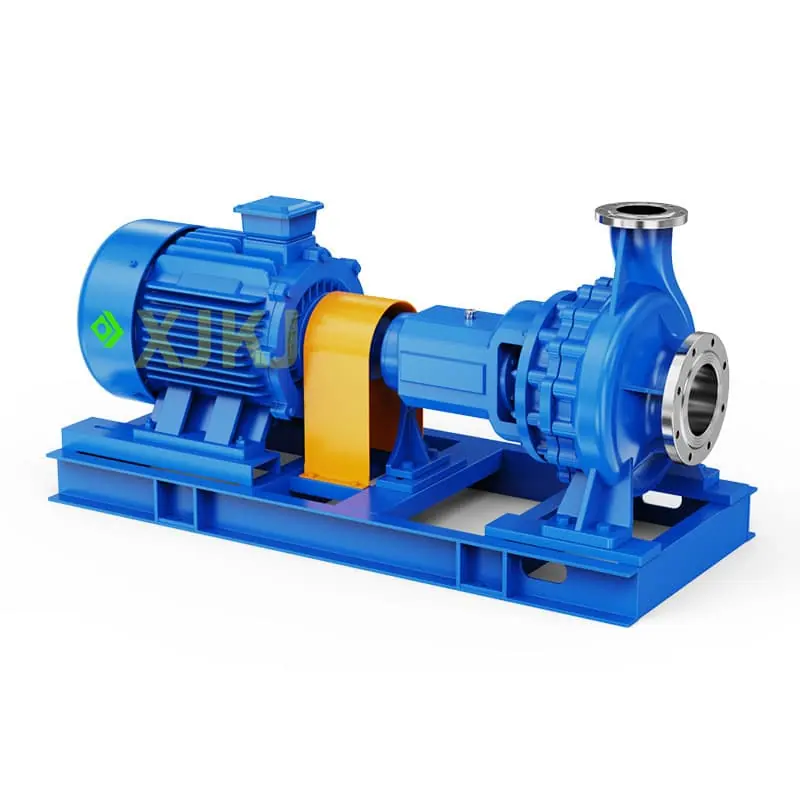

Chemical centrifugal pump XJDFZZIH series

Used in petroleum、chemical、grain and oil、 synthetic fibers、 power plants、 metallurgy、food and medicine、etc

Features	1. The pump body and impeller are precision cast with wax molds and reinforced ribs are designed on the pump body. The five suspension covers the entire series, making the pump shape beautiful、safe、reliable、and with a long service life. 2. Optional、single end face machine seal、 double end face machine seal, and double end face balanced machine seal; 3. Using elastic column pin couplings, users can choose other connection methods such as extended diaphragm couplings as needed. 4. The open impeller enhances the conveying capacity of solid particles and is not easily clogged.
Operating conditions and range	1. Flow rate: Q=3～2200 m3/h; 2. Head: H=3.1～135m; 3. Speed: n=1450r/min 2900r/min; 4. Maximum operation pressure: 1.6MPa; 5. Medium temperature: -20 ℃ ＜ T ＜+185 ℃
Ordering instruction	1. Requirements for required flow rate、head、 NPSH、 medium、temperature、material、and special parameters; 2. Flushing plan (whether equipped with heat exchangers, sealing tanks, etc.); 3. The inlet and outlet pipelines of the pump must be equipped with soft joints; The base must be grouted.
